Unity泛光（Bloom）的实现方式

泛光是由于人眼晶状体散射产生的视觉效果，用于产生如梦似幻，朦朦胧胧的感觉。Unity中自带的图像效果中，有两种实现方式，Bloom 和 BloomOptimized，单就泛光来说，两者差不多。不过前者兼顾了HDR和Flare比较复杂，而后者只是单纯的Bloom，下面就BloomOptimized简单分析一下。

同颜色校正一样，Bloom也通过重写OnRenderImage方法，来进行图像处理。首先，对原图像进行DownSample

fastBloomMaterial.SetVector ("_Parameter", new Vector4 (blurSize , 0.0f, threshold, intensity));
source.filterMode = FilterMode.Bilinear;

var rtW= source.width/2;
var rtH= source.height/2;

// downsample
RenderTexture rt = RenderTexture.GetTemporary (rtW, rtH, 0, source.format);
rt.filterMode = FilterMode.Bilinear;
Graphics.Blit (source, rt, fastBloomMaterial, 1);

fastBloomMaterial.SetVector ("_Parameter", new Vector4 (blurSize , 0.0f, threshold, intensity));

source.filterMode = FilterMode.Bilinear;

var rtW= source.width/2;

var rtH= source.height/2;

// downsample

RenderTexture rt = RenderTexture.GetTemporary (rtW, rtH, 0, source.format);

rt.filterMode = FilterMode.Bilinear;

Graphics.Blit (source, rt, fastBloomMaterial, 1);

这里传入Shader的几个参数分别是：
blurSize：模糊尺寸，用于后面模糊算法的直径。
threshold：泛光阈值，颜色亮度超过这个阈值的像素才进行泛光处理。
intensity：泛光强度。

这里的rt是一张原图1/4大小的RenderTexture，通过RenderTexutre.GetTemporary获得，Unity内部维护了一个RenderTexture池，这样获取其实拿到的是一个早已经申请好的RenderTexture，省去了临时申请的开销，而且内部针对特定平台也做了一些优化。如果在一帧中需要中间的RenderTexture，最好使用这个方式来获取临时RenderTexture，但是不用的时候，需要手动释放。RenderTexture.ReleaseTemporary。

还有就是要确保源图像和目标图像，都采用双线性过滤，这是降采样和模糊需要的优先条件。

降采样使用的Shader代码如下：

v2f_tap vert4Tap ( appdata_img v )
{
v2f_tap o;

o.pos = mul (UNITY_MATRIX_MVP, v.vertex);
o.uv20 = v.texcoord + _MainTex_TexelSize.xy;  // _MainTex_TexelSize.xy = (1/贴图宽度 ， 1/贴图高度）
o.uv21 = v.texcoord + _MainTex_TexelSize.xy * half2(-0.5h,-0.5h);
o.uv22 = v.texcoord + _MainTex_TexelSize.xy * half2(0.5h,-0.5h);
o.uv23 = v.texcoord + _MainTex_TexelSize.xy * half2(-0.5h,0.5h);

return o;

}

fixed4 fragDownsample ( v2f_tap i ) : SV_Target
{
fixed4 color = tex2D (_MainTex, i.uv20);
color += tex2D (_MainTex, i.uv21);
color += tex2D (_MainTex, i.uv22);
color += tex2D (_MainTex, i.uv23);
return max(color/4 - threshold, 0) *intensity;
}

v2f_tap vert4Tap ( appdata_img v )

{

v2f_tap o;

o.pos = mul (UNITY_MATRIX_MVP, v.vertex);

o.uv20 = v.texcoord + _MainTex_TexelSize.xy; // _MainTex_TexelSize.xy = (1/贴图宽度， 1/贴图高度）

o.uv21 = v.texcoord + _MainTex_TexelSize.xy * half2(-0.5h,-0.5h);

o.uv22 = v.texcoord + _MainTex_TexelSize.xy * half2(0.5h,-0.5h);

o.uv23 = v.texcoord + _MainTex_TexelSize.xy * half2(-0.5h,0.5h);

return o;

}

fixed4 fragDownsample ( v2f_tap i ) : SV_Target

{

fixed4 color = tex2D (_MainTex, i.uv20);

color += tex2D (_MainTex, i.uv21);

color += tex2D (_MainTex, i.uv22);

color += tex2D (_MainTex, i.uv23);

return max(color/4 - threshold, 0) *intensity;

}

其实这段代码的采样并不是很规整，就是取了目标点周围四个点的平均颜色，然后选出大于阈值的像素，乘上强度系数。小于阈值的直接设为0，这样的像素在后面计算中不会影响其他的像素。

下面对这张1/4屏幕像素的降采样结果进行模糊处理：

for(int i = 0; i < blurIterations; i++)
{
    fastBloomMaterial.SetVector ("_Parameter", new Vector4 (blurSize * widthMod + (i*1.0f), 0.0f, threshold, intensity));

    // vertical blur
    RenderTexture rt2 = RenderTexture.GetTemporary (rtW, rtH, 0, source.format);
    rt2.filterMode = FilterMode.Bilinear;
    Graphics.Blit (rt, rt2, fastBloomMaterial, 4);
    RenderTexture.ReleaseTemporary (rt);
    rt = rt2;

    // horizontal blur
    rt2 = RenderTexture.GetTemporary (rtW, rtH, 0, source.format);
    rt2.filterMode = FilterMode.Bilinear;
    Graphics.Blit (rt, rt2, fastBloomMaterial, 5);
    RenderTexture.ReleaseTemporary (rt);
    rt = rt2;
}

for(int i = 0; i < blurIterations; i++)

{

fastBloomMaterial.SetVector ("_Parameter", new Vector4 (blurSize * widthMod + (i*1.0f), 0.0f, threshold, intensity));

// vertical blur

RenderTexture rt2 = RenderTexture.GetTemporary (rtW, rtH, 0, source.format);

rt2.filterMode = FilterMode.Bilinear;

Graphics.Blit (rt, rt2, fastBloomMaterial, 4);

RenderTexture.ReleaseTemporary (rt);

rt = rt2;

// horizontal blur

rt2 = RenderTexture.GetTemporary (rtW, rtH, 0, source.format);

rt2.filterMode = FilterMode.Bilinear;

Graphics.Blit (rt, rt2, fastBloomMaterial, 5);

RenderTexture.ReleaseTemporary (rt);

rt = rt2;

}

Shader中使用的一维的高斯模糊，用先纵向再横向的方式进行了两次模糊处理。

下面是高斯模糊系数数组：

static const half4 curve4[7] = { half4(0.0205,0.0205,0.0205,0), half4(0.0855,0.0855,0.0855,0), half4(0.232,0.232,0.232,0),
half4(0.324,0.324,0.324,1), half4(0.232,0.232,0.232,0), half4(0.0855,0.0855,0.0855,0), half4(0.0205,0.0205,0.0205,0) };

1 2	static const half4 curve4[7] = { half4(0.0205,0.0205,0.0205,0), half4(0.0855,0.0855,0.0855,0), half4(0.232,0.232,0.232,0), half4(0.324,0.324,0.324,1), half4(0.232,0.232,0.232,0), half4(0.0855,0.0855,0.0855,0), half4(0.0205,0.0205,0.0205,0) };

Vertex Shader如下：在顶点上方和下方各取了3个采样点，一共7个。

v2f_withBlurCoordsSGX vertBlurHorizontalSGX (appdata_img v)
{
    v2f_withBlurCoordsSGX o;
    o.pos = mul (UNITY_MATRIX_MVP, v.vertex);

    o.uv = v.texcoord.xy;
    half2 netFilterWidth = _MainTex_TexelSize.xy * half2(1.0, 0.0) * _Parameter.x;
    half4 coords = -netFilterWidth.xyxy * 3.0;

    o.offs[0] = v.texcoord.xyxy + coords * half4(1.0h,1.0h,-1.0h,-1.0h);
    coords += netFilterWidth.xyxy;
    o.offs[1] = v.texcoord.xyxy + coords * half4(1.0h,1.0h,-1.0h,-1.0h);
    coords += netFilterWidth.xyxy;
    o.offs[2] = v.texcoord.xyxy + coords * half4(1.0h,1.0h,-1.0h,-1.0h);

    return o;
}

v2f_withBlurCoordsSGX vertBlurHorizontalSGX (appdata_img v)

{

v2f_withBlurCoordsSGX o;

o.pos = mul (UNITY_MATRIX_MVP, v.vertex);

o.uv = v.texcoord.xy;

half2 netFilterWidth = _MainTex_TexelSize.xy * half2(1.0, 0.0) * _Parameter.x;

half4 coords = -netFilterWidth.xyxy * 3.0;

o.offs[0] = v.texcoord.xyxy + coords * half4(1.0h,1.0h,-1.0h,-1.0h);

coords += netFilterWidth.xyxy;

o.offs[1] = v.texcoord.xyxy + coords * half4(1.0h,1.0h,-1.0h,-1.0h);

coords += netFilterWidth.xyxy;

o.offs[2] = v.texcoord.xyxy + coords * half4(1.0h,1.0h,-1.0h,-1.0h);

return o;

}

Fragment Shader如下：

half4 fragBlurSGX ( v2f_withBlurCoordsSGX i ) : SV_Target
{
    half2 uv = i.uv.xy;
    half4 color = tex2D(_MainTex, i.uv) * curve4[3];
    for( int l = 0; l < 3; l++ )
    {
        half4 tapA = tex2D(_MainTex, i.offs[l].xy);
        half4 tapB = tex2D(_MainTex, i.offs[l].zw);
        color += (tapA + tapB) * curve4[l];
    }
    return color;
}

half4 fragBlurSGX ( v2f_withBlurCoordsSGX i ) : SV_Target

{

half2 uv = i.uv.xy;

half4 color = tex2D(_MainTex, i.uv) * curve4[3];

for( int l = 0; l < 3; l++ )

{

half4 tapA = tex2D(_MainTex, i.offs[l].xy);

half4 tapB = tex2D(_MainTex, i.offs[l].zw);

color += (tapA + tapB) * curve4[l];

}

return color;

}

各个采样点的颜色使用高斯模糊系数加权相加，就得到了模糊后的像素颜色，横向的算法相同，只不过采样点是在横向上选择的。

fastBloomMaterial.SetTexture ("_Bloom", rt);
Graphics.Blit (source, destination, fastBloomMaterial, 0);

1 2	fastBloomMaterial.SetTexture ("_Bloom", rt); Graphics.Blit (source, destination, fastBloomMaterial, 0);

最后，把降采样，模糊后的RenderTexture与原图像叠加，就完成了Bloom效果。叠加Shader如下：

v2f_simple vertBloom ( appdata_img v )
{
    v2f_simple o;
    o.pos = mul (UNITY_MATRIX_MVP, v.vertex);
    o.uv = v.texcoord;
    o.uv2 = v.texcoord;
    if (_MainTex_TexelSize.y < 0.0)
        o.uv.y = 1.0 - o.uv.y;

    return o;
}

fixed4 fragBloom ( v2f_simple i ) : SV_Target
{

fixed4 color = tex2D(_MainTex, i.uv2);
return color + tex2D(_Bloom, i.uv);

}

v2f_simple vertBloom ( appdata_img v )

{

v2f_simple o;

o.pos = mul (UNITY_MATRIX_MVP, v.vertex);

o.uv = v.texcoord;

o.uv2 = v.texcoord;

if (_MainTex_TexelSize.y < 0.0)

o.uv.y = 1.0 - o.uv.y;

return o;

}

fixed4 fragBloom ( v2f_simple i ) : SV_Target

{

fixed4 color = tex2D(_MainTex, i.uv2);

return color + tex2D(_Bloom, i.uv);

}

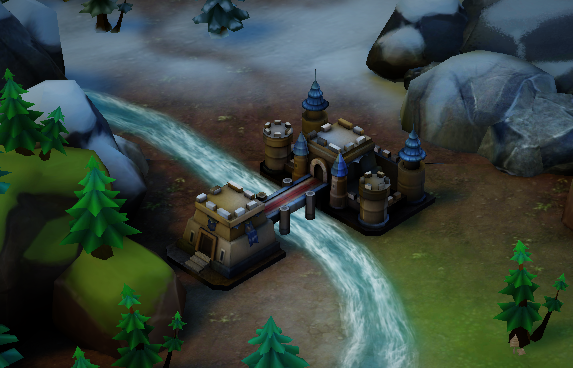

下面是效果图，原图：

QQ截图20160104211209

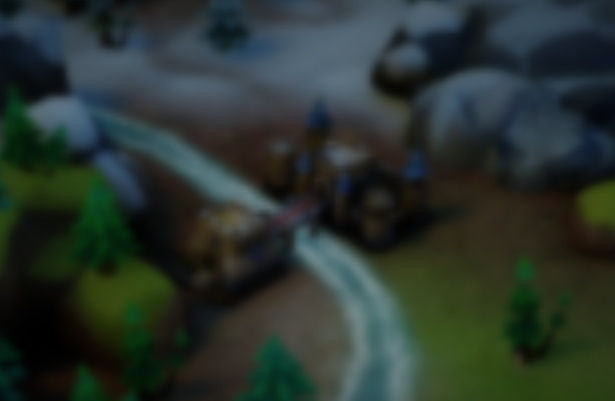

降采样，模糊后的1/4 RenderTexture：

QQ截图20160104211225

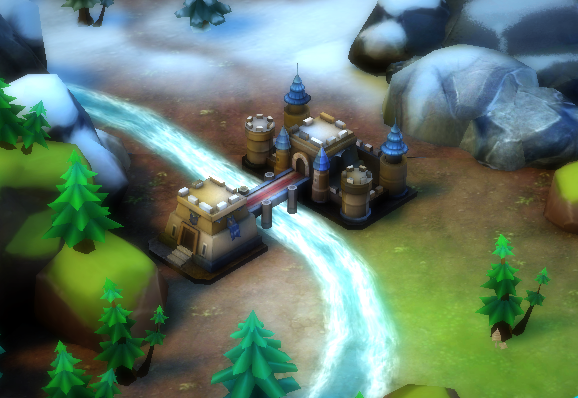

叠加后效果：

QQ截图20160104211245
